Where you are：Home ? Product Center ? Product techniques ? Extruded heat sink

　擠壓成型散熱器一般為高功率散熱元件和散熱系統，文軒熱能根據現有成熟的鋁擠型型材散熱器技術，可以提供可靠的自然對流環境解決方案。通過模具實現鋁擠壓成型，可實現復雜的散熱齒片結構。這些復雜的散熱齒片更大提高了散熱表面面積，同時降低了鋁塊加工的成本和時間。
為什么要使用文軒熱能擠壓散熱器？
（1）比沖壓成型的散熱片更高效；（2）比機械加工更節約成本；（3）有多種標準形狀和尺寸可供選擇；（4）輕松的定制實現比銅更輕，優勢明顯；（5）MAX CLIP扣件系統無需安裝硬件和工具。

查找模具（輸入?yún)?shù)查找你想要的產品）

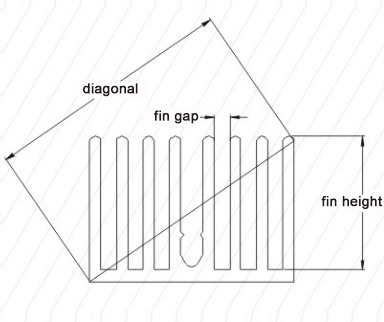

Design Parameters

The basic parameter of extrusion is as below:The basic parameter of extrusion is as below

機臺噸位對角線尺寸倍數（齒高/齒間距）機臺噸位對角線尺寸倍數（齒高/齒間距）
600T<120mm242750T<250mm21
880T<130mm243000T<320mm20
1000T<150mm223600T<350mm20
1500T<180mm224000T<400mm20
1800T<200mm216500T<540mm19
2500T<230mm218000T<700mm16

Note: Aspect ratio = fin height / fin gap

Production workshop of aluminum extruded heat sinks
Aluminum extrusion machine
Stamping machine for aluminum extruded heat sinks

Tooth features

Fin profile #1: The fin tip has the same thickness as the fin base. The aspect ratio is smaller than 10 and this structure is suitable for cooling by natural convection.

Fin profile #2: Smaller fin tip with a larger fin base and it forms a taper. High aspect ratio which is suitable for forced air cooling products. It is more lightweight under the premise of no performance reduction.

Fin profile #3: Smaller fin tip with a larger fin base and it forms a taper. Knurls are added to the fin surface. Both fin profiles #1 & #2 are suitable for this type of design to increase the surface area. The size of the knurls is inversely proportional to the aspect ratio.

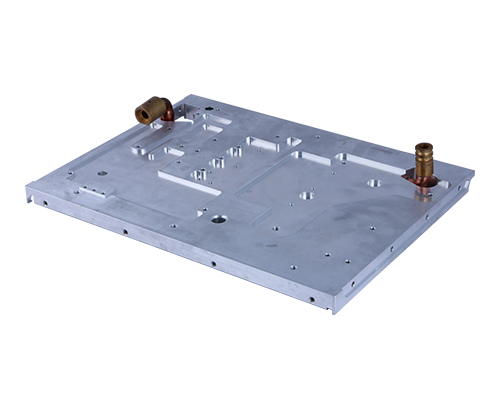

Reference product
